VMware VDI (Horizon View) Troubleshooting - Part VI

Before everything please accept my apologies because I didn’t post for nearly two months and the primary reason for this shortening is related to the recent catastrophic suppression inside my Homeland, Iran. During these two months through the Iranian protests, the IRGC military forces like the brutal alien mercenaries murdered many of my people, including more than 60 children because they are fighting for their freedom and shouting out the “Woman, Life, Freedom” slogan. This revolution disrupts the life of all Iranian around the world and plunged us into deep anger and sadness. Thanks to the people of other countries for their support, I hope they keep it up until achieving freedom for all.



After a long time I decided to continue the VDI Tshoot series (Part5 is te last one). From the beginning of introducing VMware Horizon View, the Instant Clone desktop pool is one of the three major types of Desktop Provisioning through this VDI solution. However, the Linked Clone type is deprecated in the recent versions and the real question of this topic is which one of the remaining types is suitable for your Company’s VDI deployment and why? Instant clone or Full Clone?

For an instant clone desktop pool if you change each one of the related vSphere objects, include of the cluster, snapshot, master image, and so on, you should schedule a Maintain operation to push the new snapshot of the modified image, because the desktop pool couldn’t find these previously defined objects and provisioning operations will stop. However, it didn’t stop the provisioned desktops because they are already generated and registered to the related Horizon Connection Servers. But for the next machines, it will prompt errors that will announce it’s not possible to provide new desktops and of course corresponding, VM generation inside the vSphere environment will fail too.

So run the maintain wizard and fix the issue by adding the new candidate snapshot for the future desktop deployment. Attend if you want to modify any vSphere objects that are related to the Horizon too, you should double-check them before the editing.

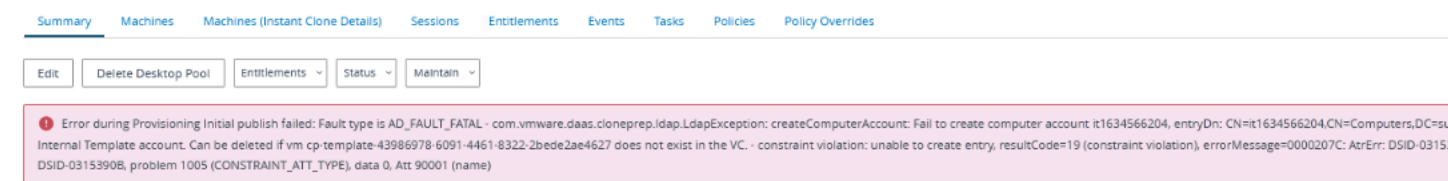

Changing the AD credential or account expiration will fail the desktop generation in the final steps. However, if you change the related OU structure, it will corrupt new desktop provisioning in the related step of computer account (SID) generation. So like the vSphere modification, you should keep in mind if you change the Active Directory objects values, you should fix them immediately in the corresponding Desktop Pool settings inside the Horizon administration console. In the following error, it prompts that computer account creation has failed.

Although the Instant Clone type is an efficient method for desktop generation, possible maintenance operations are not too much easy. To avoid issues like these mentioned ones, you can review the following consideration checklist. Most of them are based on my personal feedback in different VDI projects, so it’s my pleasure to read and add your similar experiences:

1. Review the Domain definitions. For example, all related Active Directory objects like OU and Account credentials. Also, if you provide a delegation control based on specific OU for VDI desktops, you should check its AD privileges.

2. Review the whole vSphere hierarchy objects that are related to your VDI: Datacenter, Cluster, VM folder, Golden Image VM name and the related Snapshot.

3. Also review the defined permissions in both mentioned environments (Active Directory/vSphere) if you couldn’t understand the root cause of errors or experience some new infrastructure changes recently.

4. If you removed or changed the VM’s snapshot manually or through the actions like Disk Consolidation, you should provide a new snapshot based on the required attributes for an Instant Clone desktop pool.

5. Regardless of the Instant Clone desktop pool benefits (like faster desktop provisioning and deployment) you should attend it’s naturally harder to maintainging and troubleshooting the issues related to the desktops deployed via this method, because of their complex structure. It generates a lot of vSphere objects for the Horizon environment like Internal Template, Replica and Parent VMs and the Clone itself. However, in the case of Full Image, It’s a fully independent VM that is generated for a candidate Template, while the whole preparing procedure has many manual steps and takes more time to go.

6. Check the Event in the monitoring section. By the way, if you don’t find a related error you have to investigate and deep dive inside the log file in the following default path:

   C:\ProgramData\VMware\VDM\logs\

As the last conceptual point, we should understand deeply what's going on inside a service and its related network connections and communication to truly troubleshoot related issues and the VMware Horizon View is not an exception. As an important use case, I saw many times IT staff didn't know how to configure the firewalls between the different sections of a VDI environment, especially whenever we separate the VLANs/Subnets of the desktop pools and management servers. For example Blast Extreme protocol has two sites: As the initial step of connecting the port is TCP/UDP 8443, but in the next step to communication between VDI Client and Desktop/RDSH, it's TCP/UDP 22443. So you should understand the differences in both setup and troubleshooting steps.
